Overview
ND-PD803 is single port, highpower PoE PSE solution for remote PoE PD devices. Generating up to 30W, ND-PD803 supplies remote power for new applications such as wireless access points, pan-tilt-zoon(PTZ) IP Camera and videophones. It complies with IEEE802.3at PoE standard and is backwards to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as WI-MAX and wireless IEEE802.11n access points.
For all the function featured in ND-PD803, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Feature
* 1X 10/100Mbps Auto-Negotiation RJ45 PoE ports
* IEEE802.3at compliant
* 48V /0.6A Internal power
* External power adapter supply
* Power pin :12(+) 36(-)
* LED indicators for monitoring power, PoE
* Supports automatically detect function to protect the system when the system power is overloaded or there is non-PoE device
* Support PoE Power up to 30W for the one PoE Port
* Safe: Low power devices receive only the power they need
* Safe and reliable power to WLAN access points
* Ethernet terminals
* Supports 10/100Base-T applications
* Compact design fits easily in WLAN access
* Point installation
Ordering Information
Product Model: ND-PD803
Description: Single port PoE Injector with 30W output and internal Power 10/100 M/ port
Input: 100-240V
Output: 48V/30W/0.6A DC 2 year warranty
Hardware
Product Name: 30W PoE Injector with internal power
POE characteristic: IEEE802.3 at 25.5W,
Power(max): 30W with Internal Power Adapter one port support POE power supply
Power supply way: (1/2+, 3/6- line pair) power supply
Port: 2 Ethernet front-end ports
Port parameters: Meet IEC61000-4-2( ESD) ±15KV(air), ±8KV(contact) requirements and withstand 8/20us 24A(12A) energy
LED indicator: Each port : rate,link indicator
Environment condition:
Operating Temperature :0~55;
Storage Temperature : -20~70
Operating Humidity :90% ,No condensation;
Storage Humidity: 95%,No condensation
Safety standard: CE/LVD
Output Power: DC 48V
Input Power: 100 ~ 240V AC 50 ~ 60HZ
Certification: CE, FCC ,ROHS
Dimensions: 145 (L) x65 (W) x 44 (H) mm
Weight: 350g

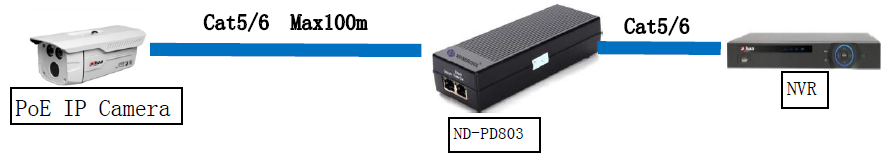

Application Diagram
Order Information
| Part No | Description of product | Unit |
| ND-PD803 | IEEE802.3af/at Standard | 1pcs |
