IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo

Product Categories
Shenzhen Newbridge Communication Equipment Co.,Ltd
Contact Now

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo

Brand Name : NEWBRIDGE

Model Number : ND1P2404FGX

Certification : FCC,CE

Place of Origin : SHENZHEN,CHINA

MOQ : 1PC

Price : Negotiation

Payment Terms : T/T , Western Union

Supply Ability : 3000pcs per month

Delivery Time : According to the quantiy and stocking , 3-4 working days after payment

Packaging Details : packing can be done by customer's requested, usually used in carton

Power Adapter Voltage : AC 110V-240V

POE Ethernet Port : 1～24 Port : 10/100Mbps

Transmission Medium : Cat5/5e/6 standard network cable

Working temperature : 0℃~55℃

Dimension (L×W×H) : 440mm*285mm*55mm

PoE Standard : IEEE 802.3af/at

Contact Now

Ethernet Network PoE Switch 24 Port10/100Mbps with 2 GE+2 SFP Combo for IP Devices

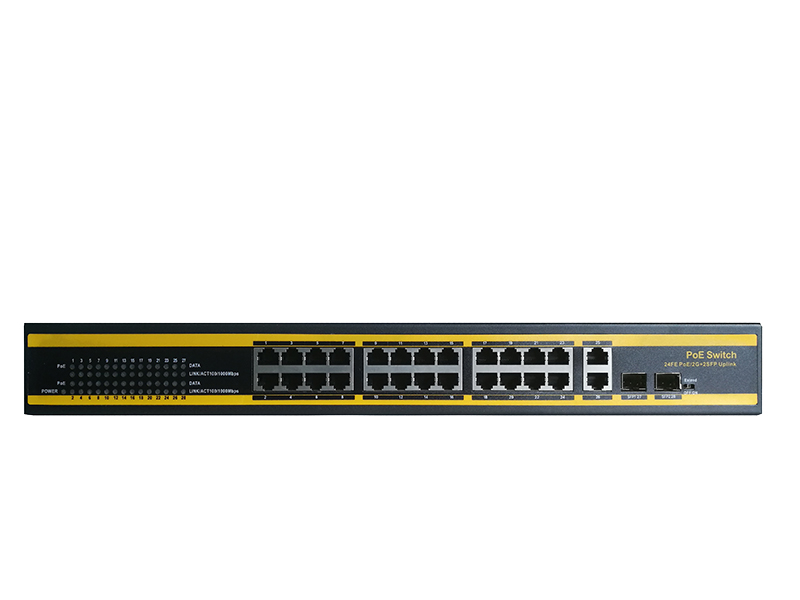

1. Overview

IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP ComboNewbridge® The switch is a compact 24+4 port PoE Switch,With 24 *10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 2*1000Mbps SFP Port(combo),The 24 PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af/at standard,with a maximum output of 30 W each port.



2.Feature



IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo



l 24*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,2 1000M SFP combo

l Support IEEE802.3af/at

l Support restrain network storm, VLAN function

l Support Max Transmission distance up to 250m with PoE Power

l All port supported by MDI/MDIX auto flip and self-negotiation

l Built-in power supply;

l Maximum power of single PoE port: 30 W;

  • Maximum PoE power: 450W;

l Adopts store-and-forward architecture;

l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

  • Support lightning protection 6000V







3．Application Diagram



IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo



4. Dimensions



IP Devices 24 Port Poe Gigabit Switch 450W 10/100Mbps With 2 GE 2 SFP Combo





5. Specifications

Item Description
Power Power Adapter Voltage AC 110V-240V
Consumption 450W(52V,8.6A)







Network Connector



Network Port

 POE Ethernet Port 1～24 Port : 10/100Mbps
Ethernet port Uplink Port : 10/100/1000Mbps
SFP Port SFP Port : 1000Mbps



Transmission Distance

1～24 Port : 100Mbps:0~100m;

10Mbps: 0~250m;
Uplink Port : 100m



SFP: depends on the optical module(20km,40km...)
Transmission Medium Cat5/5e/6 standard network cable







Network Switch

 Network Standard IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab
Switching Capacity 12.8Gbps
Packet Buffer Memory 1Mbits
Throughput 9.5232Mbps
MAC Table 4k



Packet Forwarding Rate

10Mbps:14880pps/port

100Mbps:148800pps/port

1000Mbps:1488000pps/port



Power Over Ethernet

 PoE Standard IEEE 802.3af/at
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W,at=30W



RJ45 port





Port Function

 Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode



LED Indicator



LED Indicator

 LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender



Environmental

 Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃



Mechanical

 Dimension (L×W×H) 440mm*285mm*55mm
Color Silver-Gray
Weight 4.05kg



6. Order Information

Part No Description of product Unit
ND1P2404FGX 28 ports switch with 24*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 2*SFP combo,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) pc
