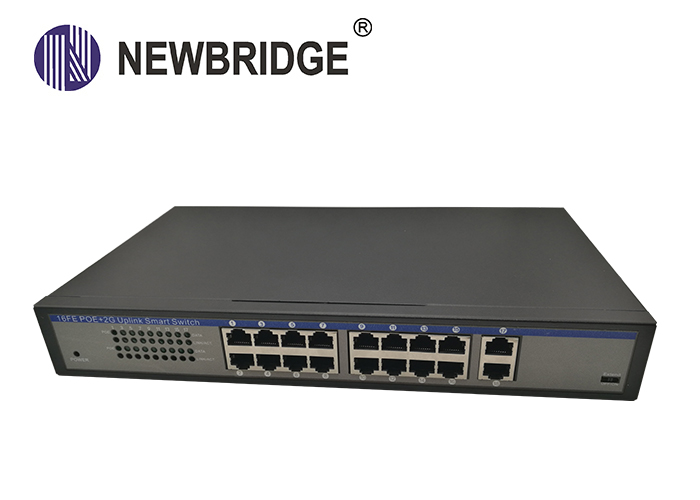

RJ45 100M Industrial Poe Switch 16 POE Port 2 Combo Port With CE Certification

Brand Name : NEWBRIDGE

Model Number : ND1P1602FG

Certification : FCC,CE

Place of Origin : SHENZHEN,CHINA

MOQ : 1PC

Price : Negotiation

Payment Terms : T/T , Western Union

Supply Ability : 3000pcs per month

Delivery Time : According to the quantiy and stocking , 3-4 working days after payment

Packaging Details : packing can be done by customer's requested, usually used in carton

Power Adapter Voltage : AC 110V-240V

POE Ethernet Port : 1～16 Port : 10/100Mbps

Transmission Medium : Cat5/5e/6 standard network cable

Working temperature : 0℃~55℃

PoE Power : af=15.4W (every port)

Weight : 1647g

Contact Now

16 POE port+2 Combo port RJ45 100M PoE Switch





1. Overview

RJ45 100M Industrial Poe Switch 16 POE Port 2 Combo Port With CE CertificationNewbridge® The switch is a compact 16+2 port PoE Switch,With 16*10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports ,The 16*PoE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD),such as VOIP phones,IP Cameras, all PoE ports support the IEE802.3af standard,with a maximum output of 15.4w each port.



2.Feature

RJ45 100M Industrial Poe Switch 16 POE Port 2 Combo Port With CE Certification



l 16x 10/100Mbps auto-sensing RJ45 ports,16x 10/100Mbps PoE ports, 2*10/100/1000M uplink port

l Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and1~8 downlink ports only able to communicate with uplink ports. The communication distance extends to 250 meters

l Supports port auto-flip (Auto MDI/ MDIX);

  • Each of 16 ports all support IEEE802.3af;

l Maximum power of single PoE port: 15.4W;

l Maximum PoE power: 250W;

  • Adopts store-and-forward architecture;





3．Application Diagram



RJ45 100M Industrial Poe Switch 16 POE Port 2 Combo Port With CE Certification

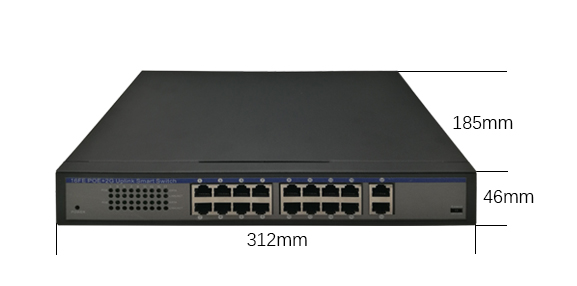

  • Dimensions

RJ45 100M Industrial Poe Switch 16 POE Port 2 Combo Port With CE Certification





5. Specifications

Power Power Adapter Voltage AC 110V-240V
Consumption 250W



Network Connector

 Network Port POE Ethernet Port 1～16 Port : 10/100Mbps
Ethernet port Uplink Port : 10/100/1000Mbps



Transmission Distance

1～16 Port : 100Mbps:0~100m;

10Mbps: 0~250m;
Uplink Port : 0 ~ 100m
Transmission Medium Cat5/5e/6 standard network cable



Network Switch

 Network Standard IEEE802.3/802.3u, IEEE802.3x,IEEE802.1D
Switching Capacity 9.2G
Packet Forwarding 6.8448Mpps
MAC Table 2K



Power Over Ethernet

 PoE Standard IEEE 802.3af
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W (every port)



LED Status Indicator



PoE Ethernet

LED Indicator

 Power: 1 red light indicates that the power normal work;
PoE: 16 yellow lights indicate that the PoE is power on;
Ethernet:18 green lights indicate that the Ethernet Link and Act;



Environmental

 Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃



Mechanical

 Dimension (L×W×H) 312mm*185mm*46mm
Color Black
Weight 1647g
Stability MTBF >30000h



6. Order Information

Part No Description of product Unit
ND1P1602FG 18 ports switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port,PoE Standard: IEEE 802.3af,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) pc
